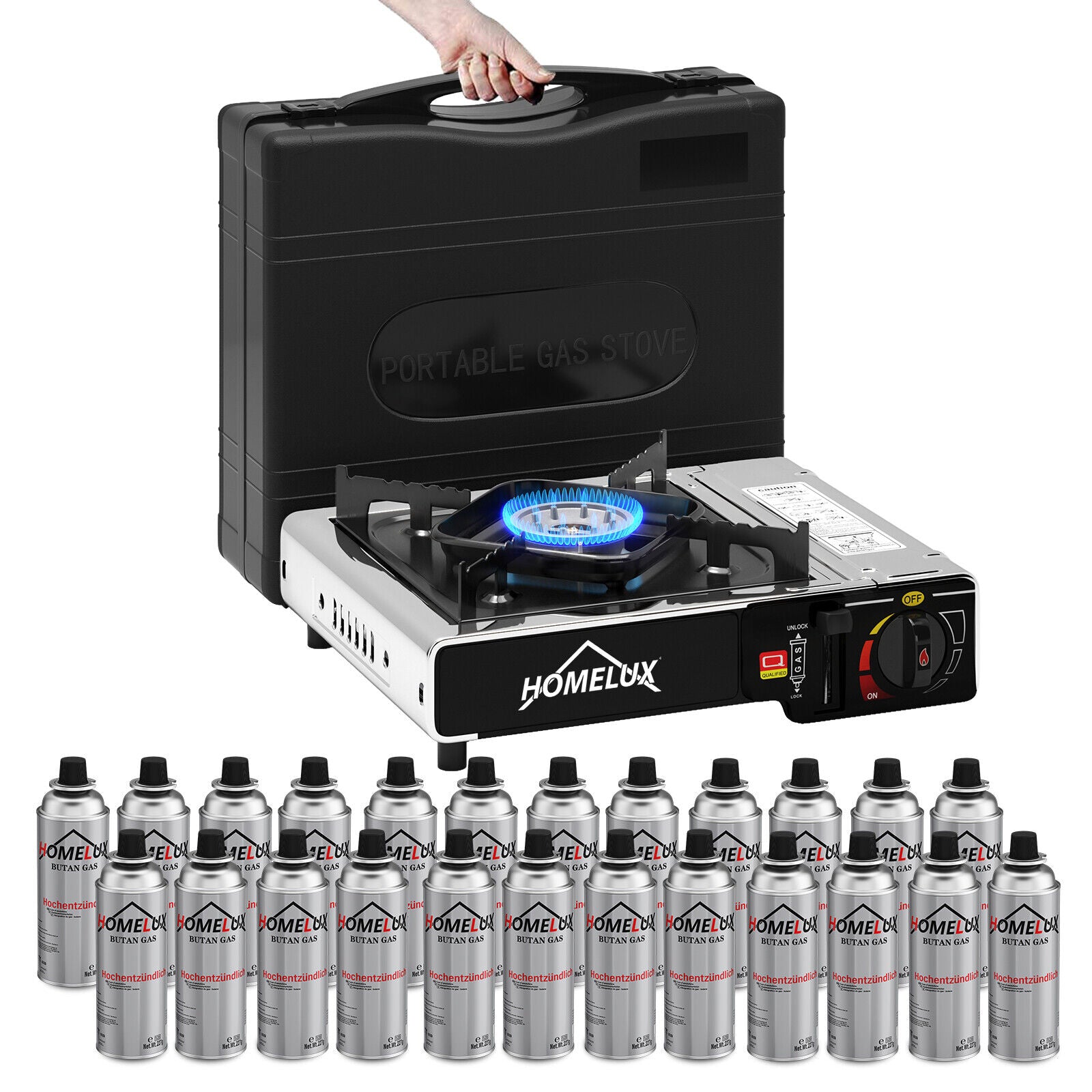

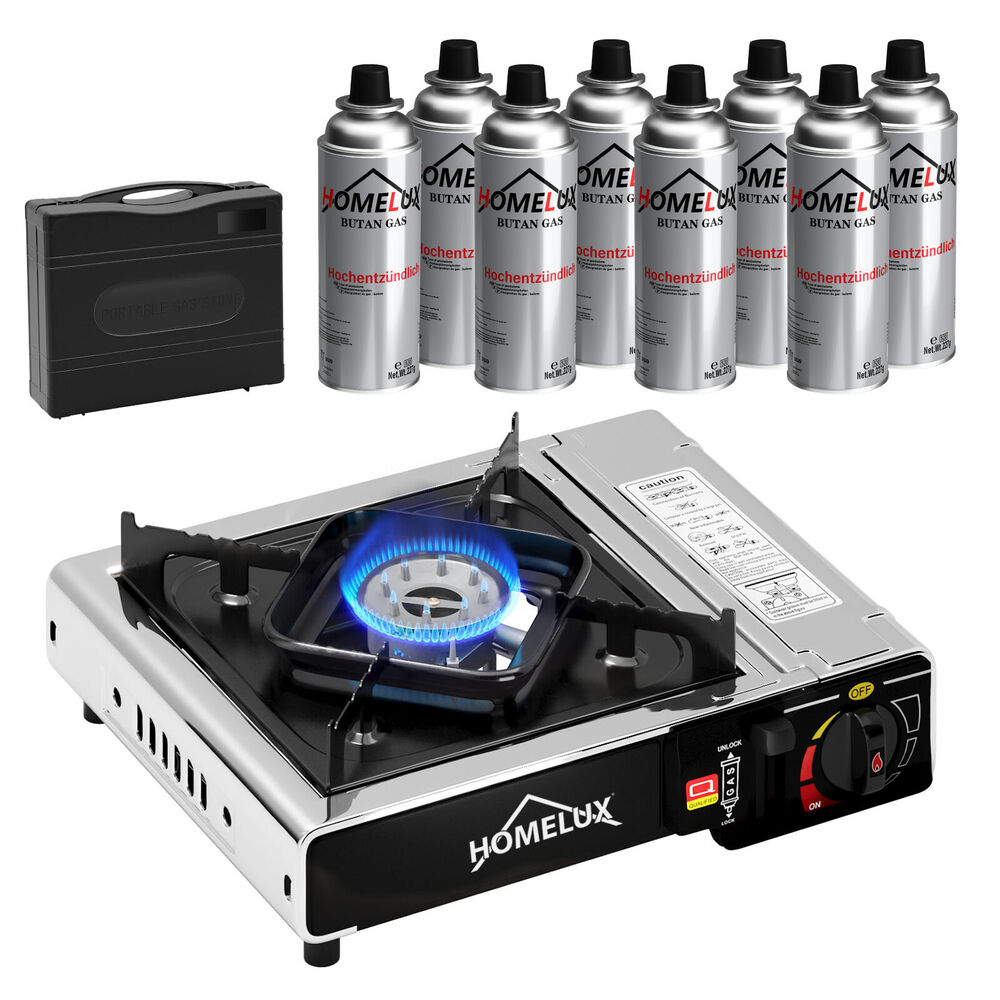

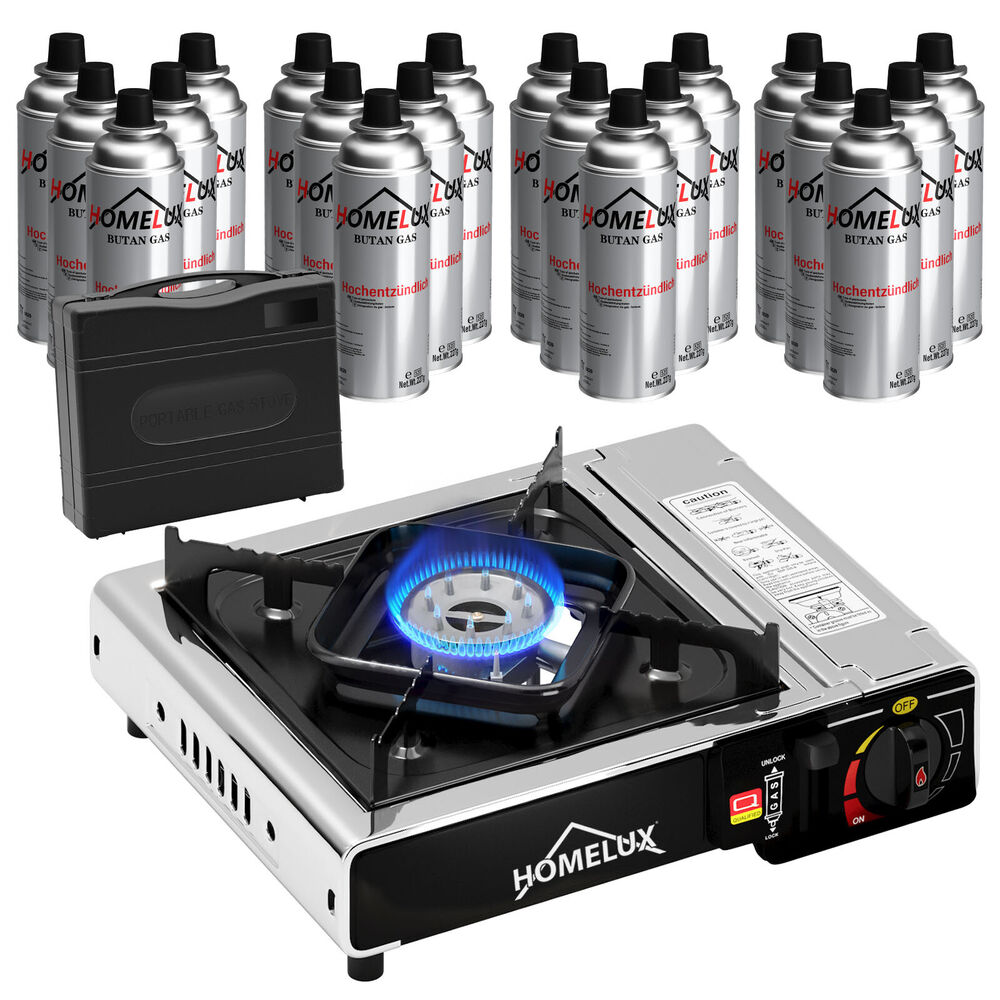

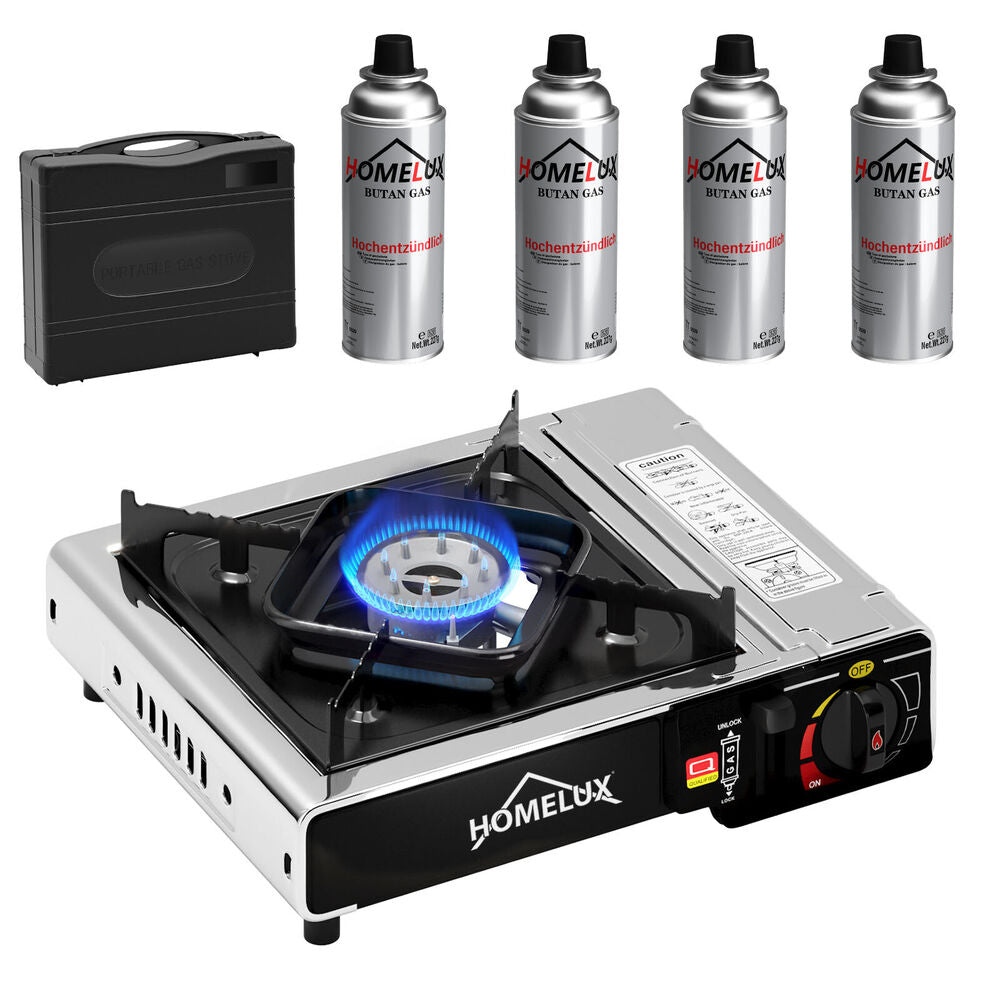

Camping stove 2.2 KW gas stove with 227g gas cartridges butane gas outdoor

【High Performance Butane Stove】Compared with others, our portable butane stove is equipped with an advanced heating plate with super high power, which is able to maintain maximum heat output and leave no residual fuel.

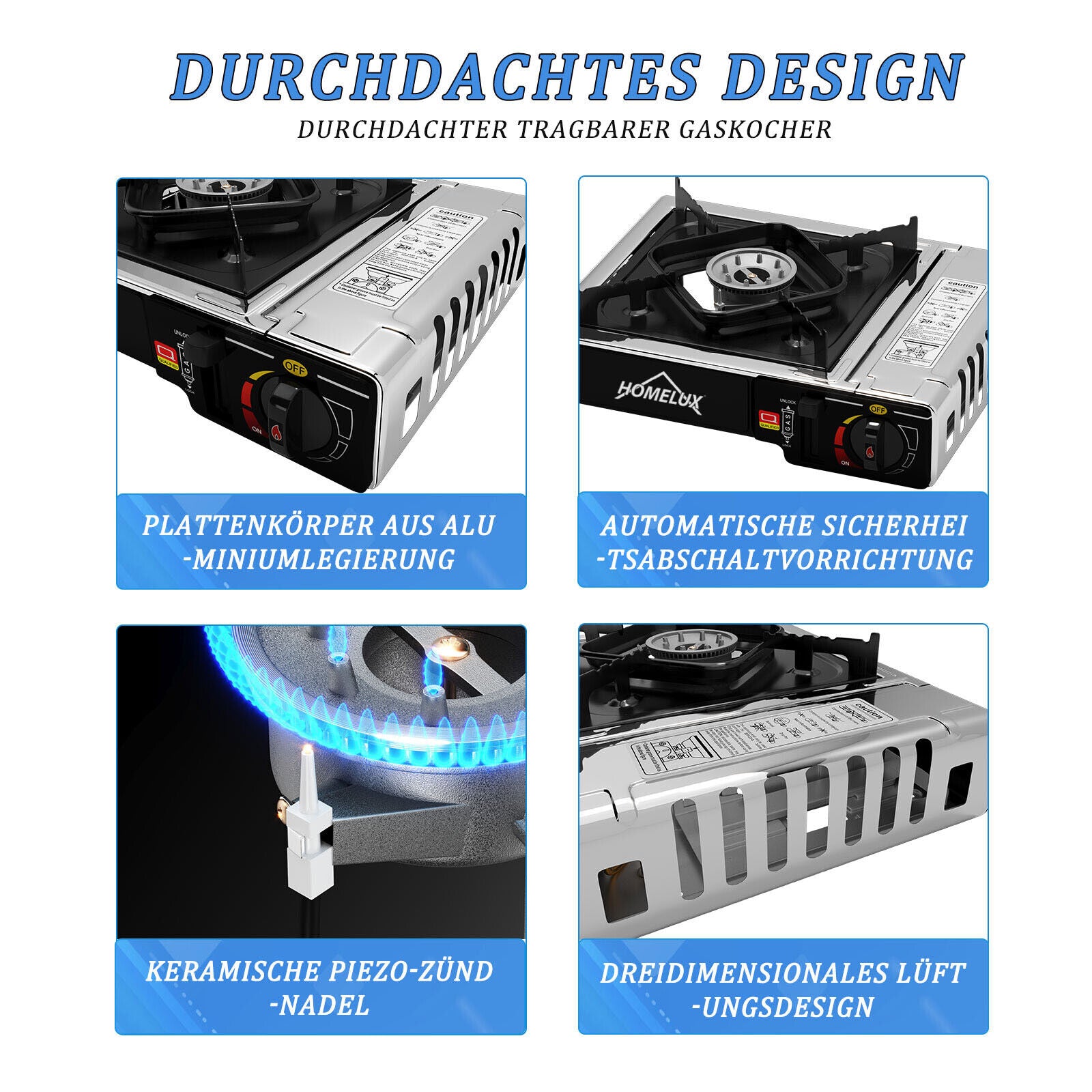

【High-Safety Standard Features】The safe flameout setting has an external sealing system to prevent gas leakage. The windproof design and explosion-proof furnace core have good heat dissipation performance and the flame is more stable. Please rest assured to use our product. Piezo ignition design with safety lock for easy use.

【Brass Burner】Unlike other aluminum alloys, the brass burner head helps this gas stove extend its service life. In addition, the butane gas stove is made of durable stainless steel and is rust-proof and easy to clean for years of use.

【GAS STOVE IS SIMPLE AND EASY TO USE】Our portable gas grill is easy to install and use, anyone can get started quickly, just put the butane gas fuel we carry on the correct card slot and cover it.

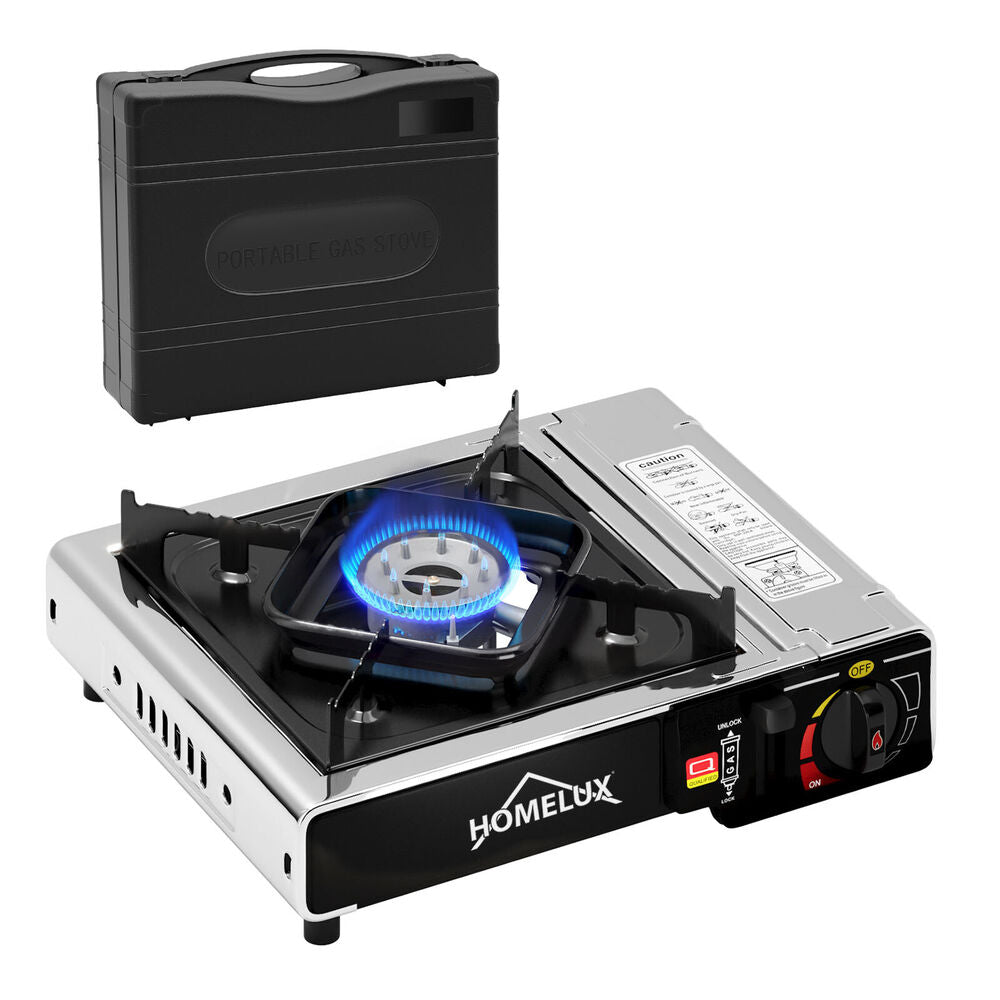

【Portable Camping Stove】Sizes in 34cm L x 24cm W x 7cm H and comes with a carrying bag for easy carrying and easy storage, ideal for camping, fishing, traveling, adventure, home emergencies, etc.

Characteristics:

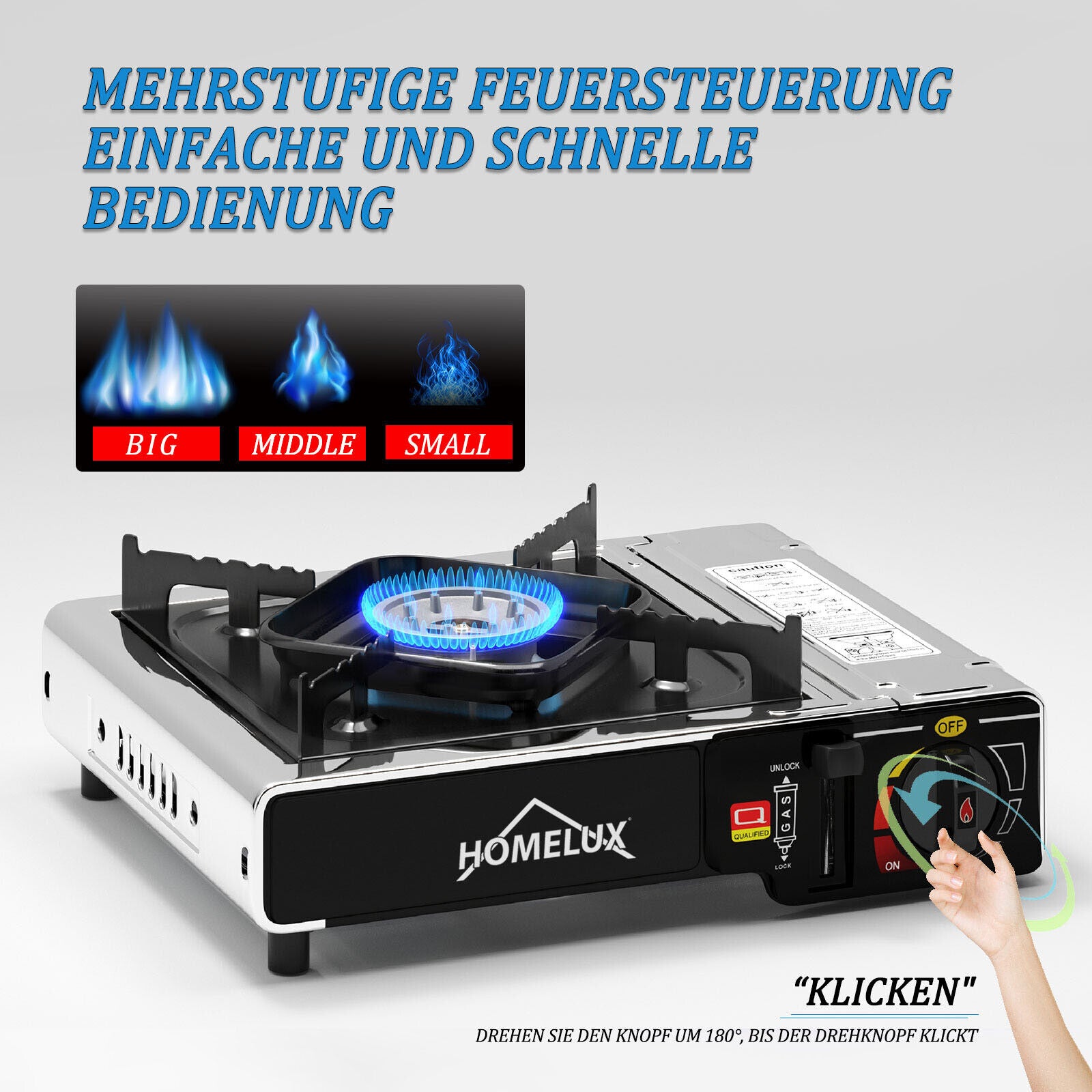

Flame infinitely adjustable by rotary knob
Burner head made of aluminum
Wind protection, single flame

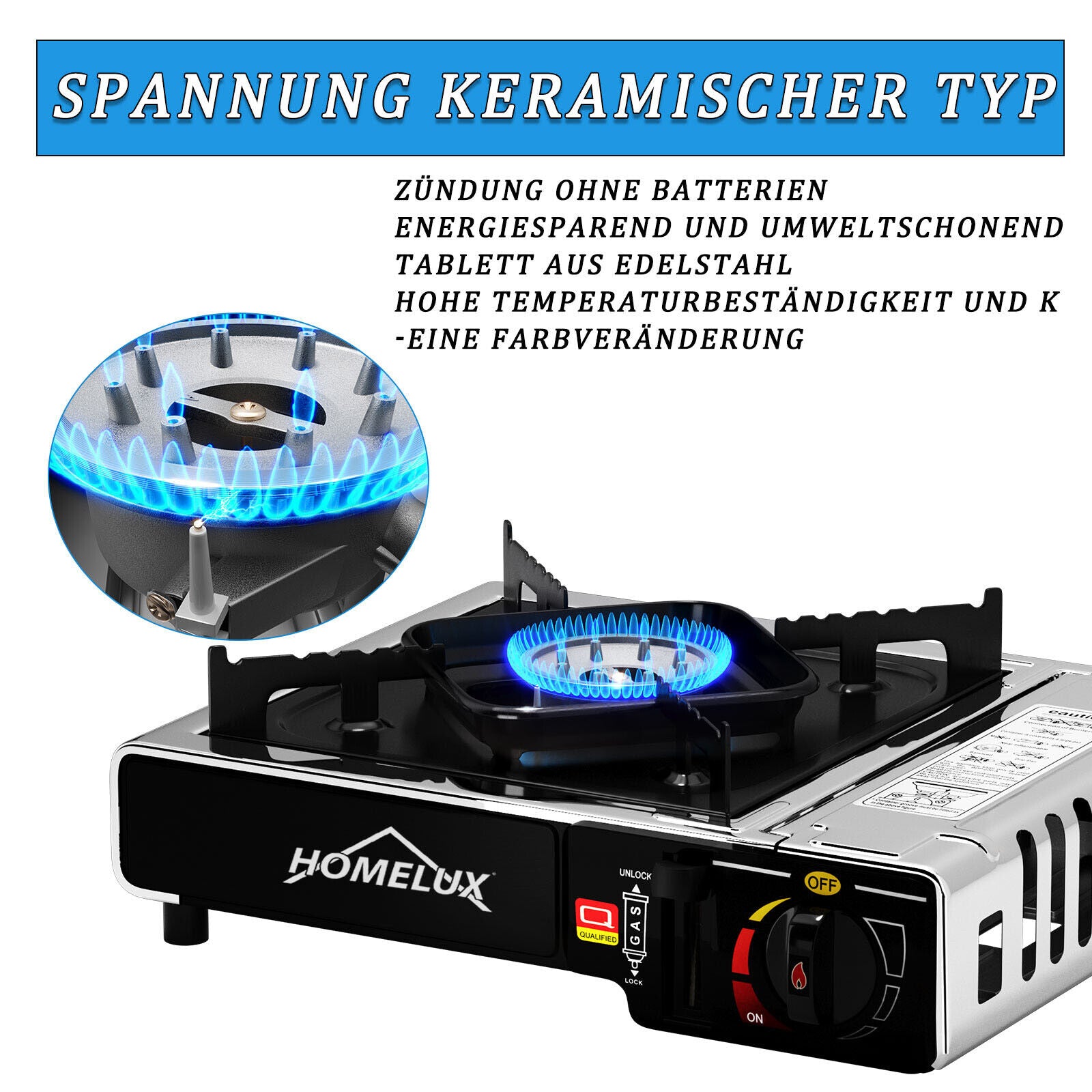

automatic piezo ignition (electric)
Stable all-metal housing with removable pot stand
Safety through pressure sensor
CE verification
Heat output: 2.2KW
Dimensions: approx. 34L x 24W x 7H cm
Weight: approx. 1.85 kg
TECHNICAL DATA:
Product name:Gas cooker
Model:JY-500A
Gas type:Butane
Device category:Direct pressure - butane
Target countries:All EU Member States
Nominal heat output (Hs):2.2kW
Gas consumption:155g/h
Diameter of connection opening: 0.55 mm
Maximum diameter of the pan to be used (with water): 200 mm
A primary overpressure protection device: 4.5 bar~5.5 bar
A secondary overpressure protection device:5.5bar~6.5bar
Gas container designation:220 grams
Gas tank manufacturing:TAEYANG Corporation
Gas container certificate number:10/KR/2114-0-REV 5

Gas cartridge details:

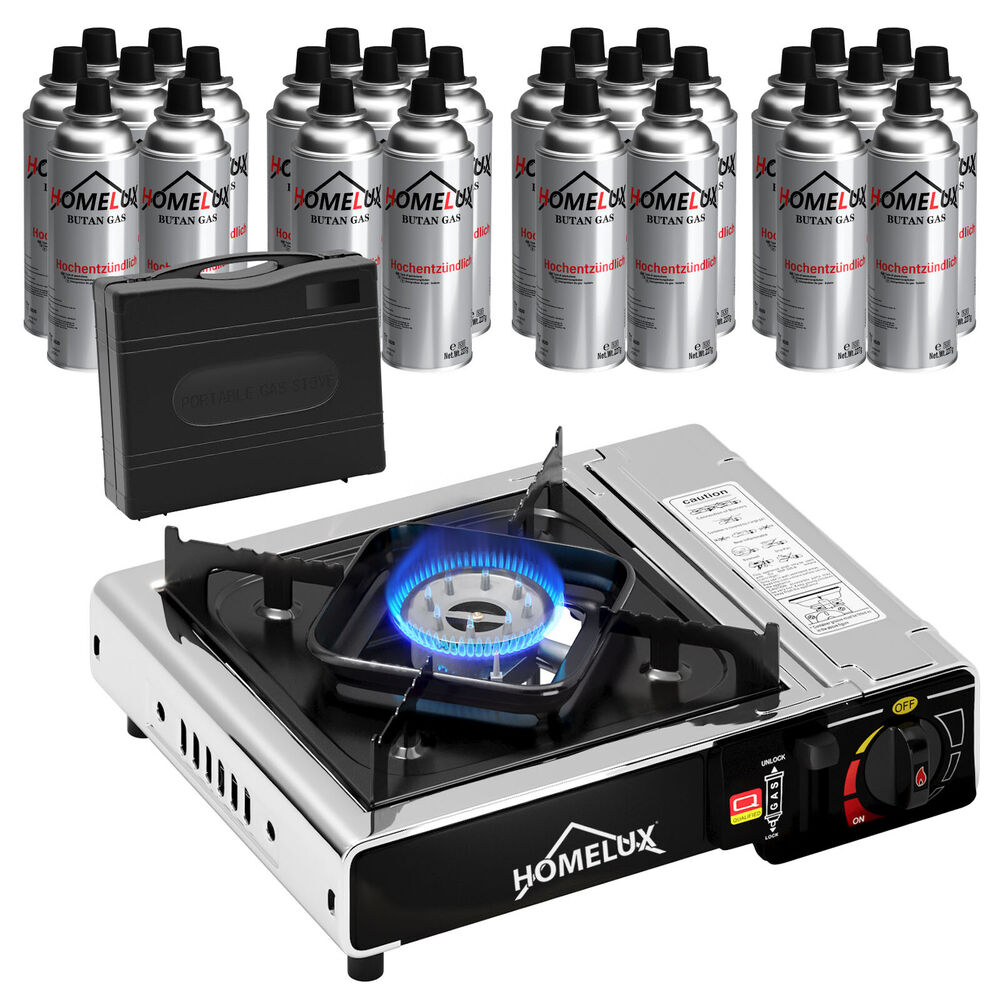

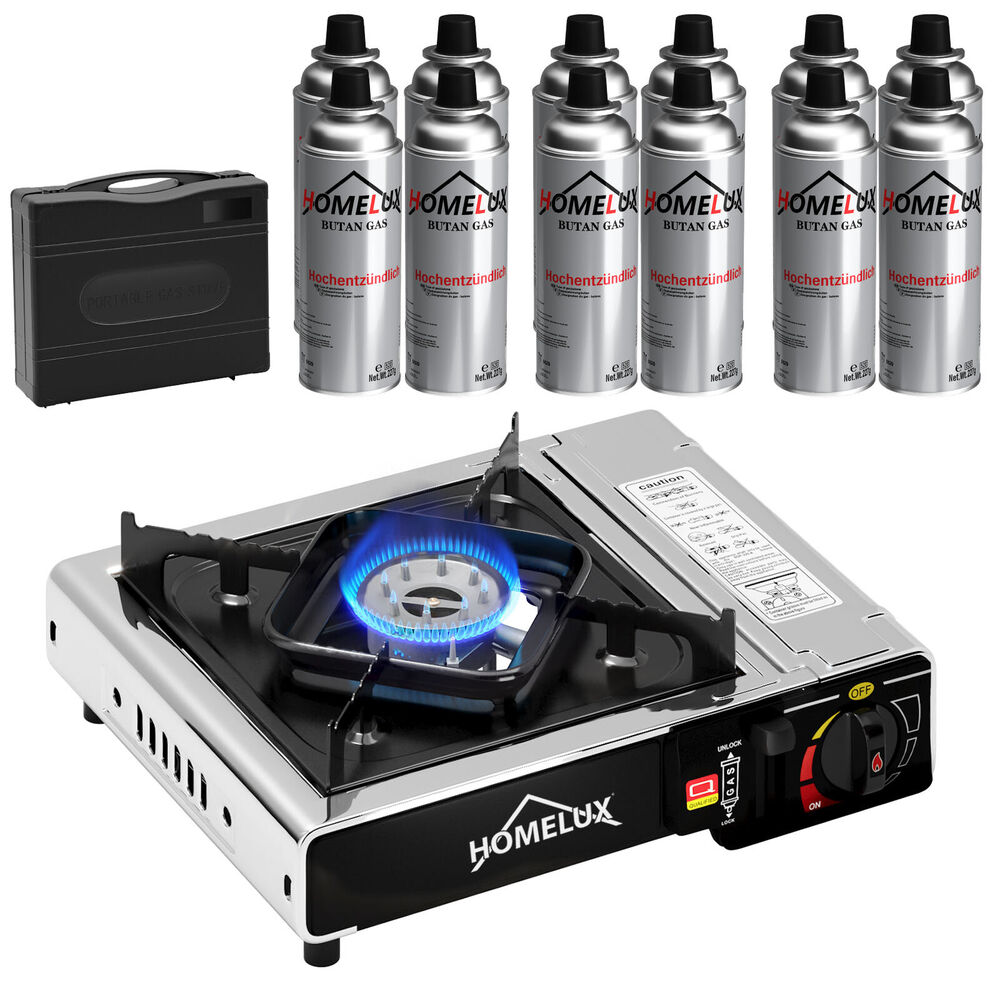

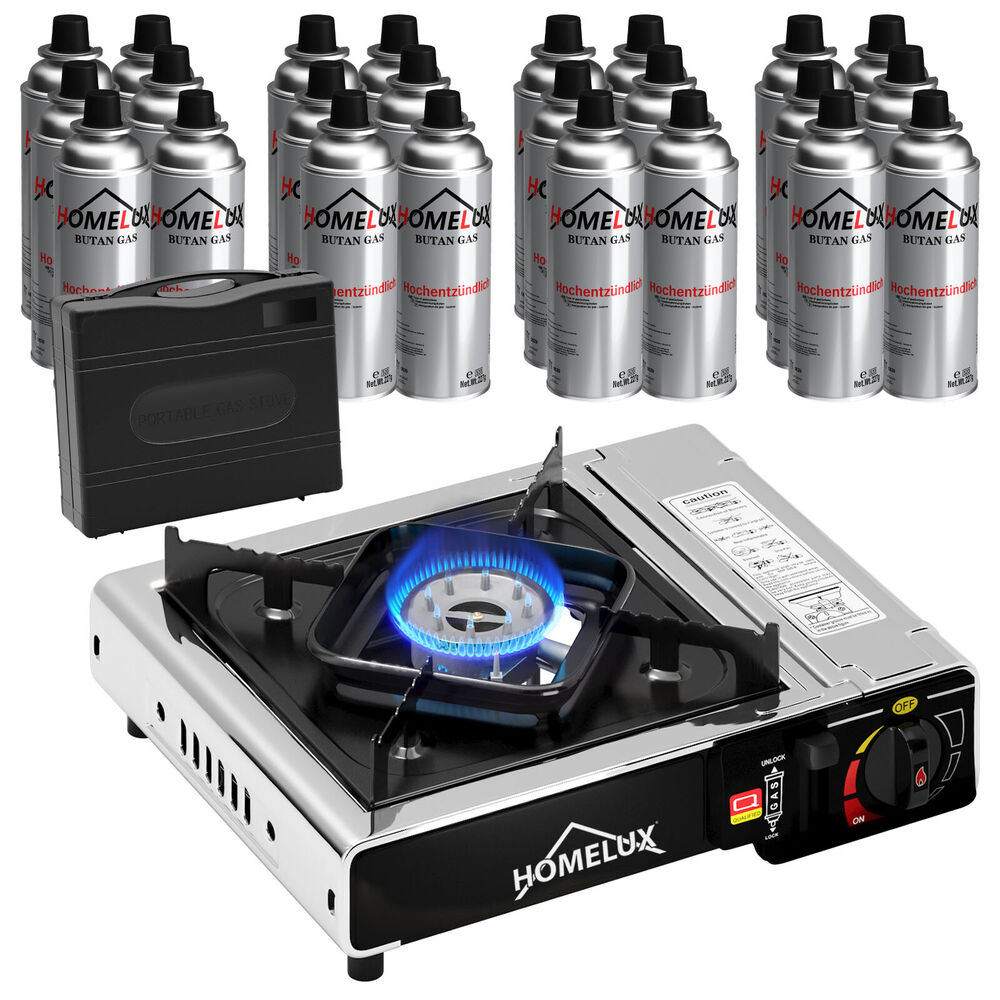

227g butane gas cartridge
Burning time up to 3 hours, depending on the gas setting on the device.
Butane gas cartridge is suitable for all gas-powered devices such as heaters, cookers, grills and burners that require a butane gas cartridge.

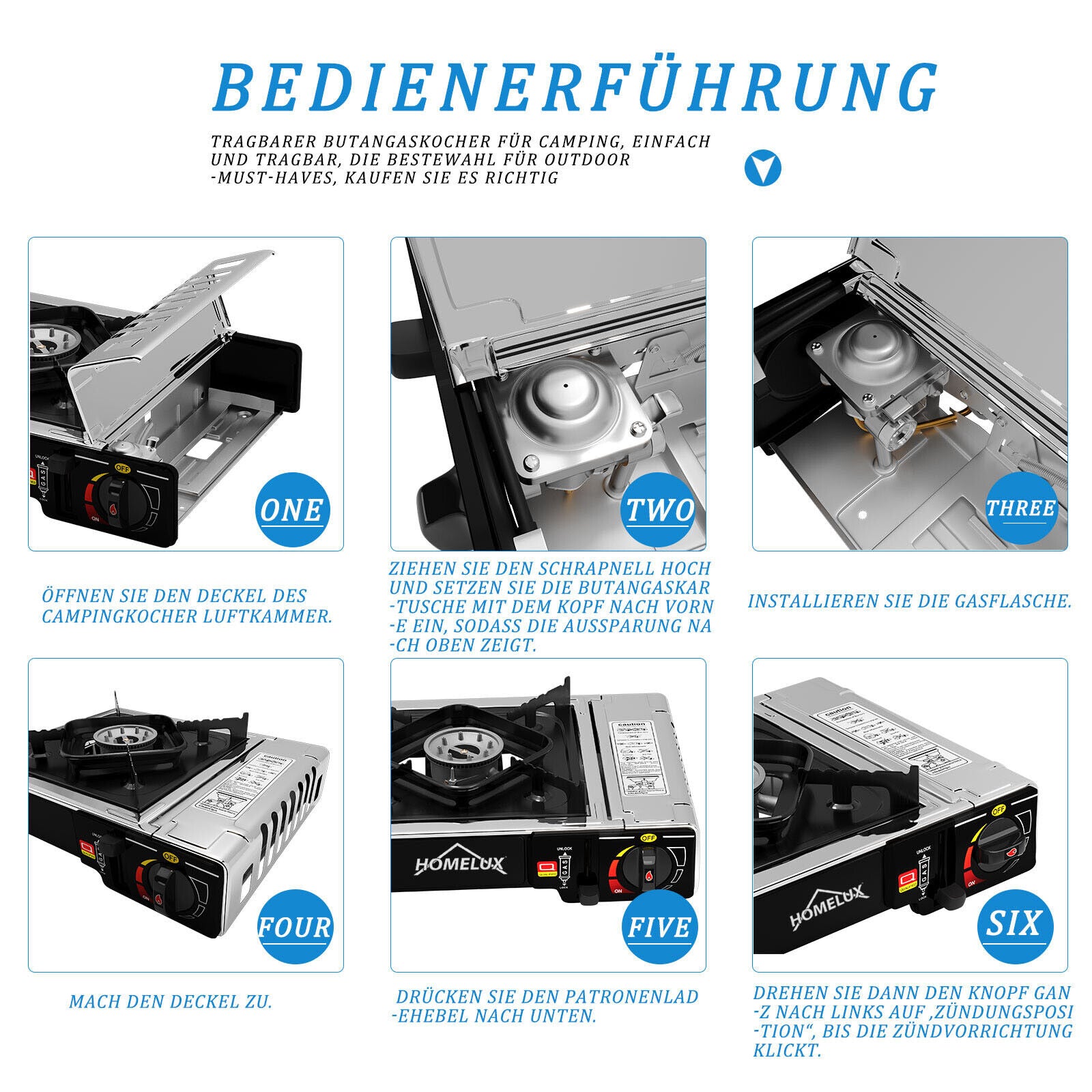

OPERATOR GUIDANCE

1. Open the lid of the camping stove air chamber.

2. Pull up the shrapnel and insert the butane gas cartridge with the head facing forward so that the recess is facing upwards.

3. Install the gas bottle.

4.Close the lid.

5. Push the cartridge loading lever down.

6. Then turn the knob all the way to the left to the “ignition position” until the ignition device clicks.
